Electric Pool Heater

• Electric heater suited for above ground pools up to 12ft (3.6m). Includes pool thermometer.
• Take the chill off your pool
• Only suitable for use with round Easy Set or Metal Frame pools
• Easy to connect up to your pool
• 230V Electrical Heater
• With water level sensor. 2.2 Kw output.
• nb. YOUR PUMP FLOW MUST BE AT LEAST 800 gph (3,636 ltr) otherwise it will trip out. !! *Not suitable for the smaller Intex pumps.

• Compatible with: filter pumps with a flow rate of 500 - 2500 gallons/hour (1893 - 9464 litres/hour).

With the Intex 28684 pool heater, you can enjoy your outdoor above ground swimming pool even on the chillier evenings. This heater will warm the water up to 35°C and is an easy to install and maintain heating system.

The Intex 28684 heater has a rapid heating system that will raise the temperature by approximately 0.5°C per hour



• The heating is connected to the filter device.
• The water flowing from the filtration into the pool is heated using an electric heating coil located in the heating element.
• To install the heating, it is necessary that the connection of the filtration to the pool is made with a hose with a diameter of 32 mm.¬†
• Maximum water flow up to 4m3/hour. Water temperature up to 35ÀöC.
• Maximum volume of water in the pool 15m3
• Parameters: 230V, 50Hz, 3000W, IP25 protection.
• The electric pool heater must be installed as the last part in the line on the hose that returns the water back to the pool (after filtration). For better efficiency of electric heating, we recommend using a solar sail.

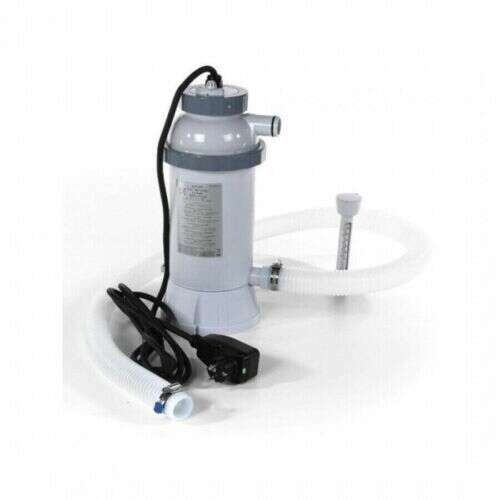

• Package contents heating 32 mm hose with a length of 1.5 m 2 hose clips thermometer
• IMPORTANT : If the electric heater is not in a vertical position, the safety switch automatically switches it off.
• Make sure that the electric heater is always in a vertical position while it is plugged into the mains socket. The filter pump must be started before you switch on the electric heating!!! Never use the pool if the water temperature exceeds 35 ¬∞C. Do not start the electric heater when someone is in the pool. Heating is not intended for salt water pools.
